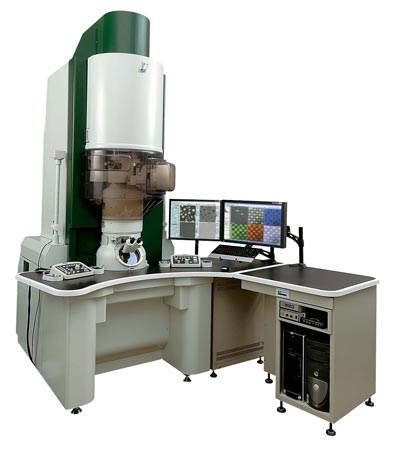

• JEM-ARM300F: The Ultimate Atomic Resolution Transmission Electron Microscope

  Transmission electron microscopy (TEM) has long been a tool essential for micro structure evaluation in the field of materials development. However, as the fine structures of advanced materials are being designed at the nano level or atomic level, the synthetic process for such materials increasingly requires imaging and analysis at higher resolution. To meet this demand, JEOL has focused on development of a transmission electron microscope incorporating spherical aberration correctors to exceed the current resolution boundary. In 2009, JEOL announced the JEM-ARM200F, a 200 kV atomic resolution analytical transmission electron microscope featuring spherical aberration correctors, which achieved a resolution of 80 pm (scanning transmission (STEM) image) as the first ever commercial electron microscope.  To achieve the atomic level resolution, the JEM-ARM200F incorporates various capabilities to ensure highly stable operation.  With over 100 units of the ARM200F currently in operation worldwide, many researchers have become familiar with atomic level imaging and analysis. Meanwhile, as aberration correctors are widely used, various new requirements for transmission electron microscopy are emerging, in addition to higher resolution, including higher analytical sensitivity, in-situ imaging, flexible accelerating voltage control, ...
•
  JEM-ARM200F, An Ultimate Atomic Resolution Transmission Electron Microscope

  JEOL Ltd. (Gon’emon Kurihara, President) announced a new transmission electron microscope, JEM-ARM200F, incorporating a spherical aberration corrector for the electron optic system as standard, to be distributed in March 2009. Background Transmission electron microscopes are designed to study the geometry and structure of substances at high resolution. They can also analyze the elements constituting substances and the status of electrons by incorporating various analyzers such as energy dispersive X-ray fluorescent spectrometer (EDS) and electron beam energy loss spectrometer (EELS). A new technology has recently been introduced to correct spherical aberrations that have long restricted the resolving power of electron microscopes. Spherical aberration correctors significantly enhance the resolution and analytical capabilities, enabling ultimate atomic level analysis. The JEM-ARM200F is a powerful transmission electron microscope with a standard spherical aberration corrector, featuring sub angstrom resolution and atomic level analysis. Features Atomic level resolution - STEM: 0.08 nm; TEM: 0.11 nm Standard spherical aberration corrector for electron optic system eliminating spherical aberrations Maximum accelerating voltage 200 kV
•
  First JEOL JEM-ARM200F Electron Microscope Produces Atomic Resolution Data in Record Time at University of San Antonio

  The first transmission electron microscope of its caliber to be installed, the eagerly awaited atomic resolution JEOL JEM-ARM200F TEM arrived at the University of Texas at San Antonio in January, and by early February began producing outstanding imaging results. “Achieving raw HAADF images showing at least 78 picometer information transfer in just three weeks demonstrates the stability of this all-new instrument and the skill of the UTSA-JEOL team to quickly power up the first TEM of its kind,” said Dr. Thomas Isabell, JEOL USA Director of the TEM Product Division. UTSA physics and astronomy department chair Dr. Miguel Yacaman, a renowned electron microscopist and nanotechnology researcher, tested the new ARM200F performance on Si samples as the JEOL engineering, service and applications team worked closely together to install the TEM in UTSA’s Advanced Microscopy Lab. “At the level of this new microscope, the potential for new discoveries is enormous,” says Yacaman, who likened the capabilities of the JEOL ARM200F for sub-atomic research to those of the Hubble telescope for intergalactic exploration. The ARM200F represents more than 60 years of TEM expertise at JEOL ...
•
  JCM-6000 ”NeoScope™”, A New Desktop Scanning Electron Microscope

  JEOL's JCM-5000 NeoScope, since it was announced, has been widely used by electronics manufacturers, including semiconductor device makers, as a desktop scanning electron microscope featuring the same ease of operation as optical microscopes for inspection of the products developed and processed by micro technologies. The new JCM-6000 "NeoScopeTM," is a touch panel controlled, multi functional desktop scanning microscope that answers the increasingly diversified needs among users worldwide. Nikon has joined JEOL to sell the Neoscope. Features 1) Simple operation Easy touch panel operation A complete range of automated functions (auto focus, auto stigmator, auto contrast/brightness) Easy, dependable auto gun alignment (filament centering) 2) Enhanced low vacuum capability Enhanced quality of backscattered electron images Easy observation of non conductive samples in the direct low vacuum mode Only 2 minutes 30 seconds from sample loading to imaging 3) New capabilities for imaging Secondary electron imaging and backscattered electron imaging supported at high vacuum Dual frame imaging to facilitate comparison of live and retrieved images A wide magnification range from the lowest 10x for wide area of view up to 60,000x 4) A complete line of optional accessories Energy dispersive X-ray spectrometer Tilt/rotation motor drive specimen holder *Both options ...
•
  JEOL Announces a New Field Emission Scanning Electron Microscope, JSM-7800F

  An ultimate analytical tool for a wide range of applications Scanning electron microscopes are used in a wide range of fields from basic material research to specific applications in production. The JSM-7800F is an ultimate analytical tool that answers a wide variety of users' needs. With its new super hybrid objective lens, the microscope is capable of high resolution imaging as well as high speed, high precision elemental analysis. Features Ultimate resolution The super hybrid objective lens achieves resolutions of 0.8 nm (15 kV) and 1.2 nm (1 kV). High speed, high precision elemental analysis The microscope performs speedy sample analysis with the optimally focused electron probe at high current without compromising the analytical accuracy and the quality of elemental mapping. High quality data acquired by stable electron probe The long lasting in-lens thermal electron gun produces a stable probe, which allows for continuous acquisition of high quality data from imaging and from various analysis including EDS, WDS, EBSD, and CL. Support of wide ranging samples The super hybrid objective lens can image/analyze magnetic samples at high magnification. It also makes imaging of non conductive samples easy.
•
  JSM-7100F Thermal field emission electron microscope

  Observation of nano-structures The unique high power optics of JSM-7100F guarantees 1.2nm resolution. High magnification for the study of nano-structures is easily obtained. Stable high precision analysis The in-lens thermal FEG produces a stable large probe current. You can obtain high quality observation and analysis results. The emitter is guaranteed for 3 years. Magnetic specimens The objective lens of the JSM-7100F does not form magnetic field around a specimen. Magnetic specimens can be observed and analyzed without restriction. Analysis of nano-structures A small probe diameter is obtained with the patented aperture angle optimizing lens. You can acquire high precision analyses and high quality elemental maps in a short time by using a large probe current. A variety of analytical equipment including EDS, WDS, and EBSD can be mounted their ideal geometry. Clean vacuum A specimen is introduced through the specimen exchange airlock chamber. The specimen chamber is always kept in clean high vacuum. The unique one action specimen exchange mechanism lets you insert and remove a specimen with simple operation. The specimen chamber is pumped with a TMP. In-lens thermal FEG The patented in-lens thermal FEG is efficient and produces ...
